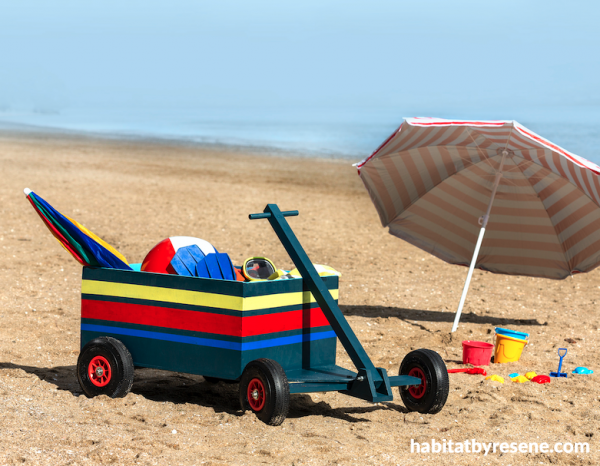

We built this cart with new parts for less than $150, but it could be even more budget-friendly with upcycled timber and old pram or wheelbarrow wheels. Paint your trolley in bright, fun Resene colours to make a day at the beach even sunnier or paint it to match your vegetable patch and use it for carting around garden tools and paint.
You will need:
Resene shopping list:
Timber cutting list

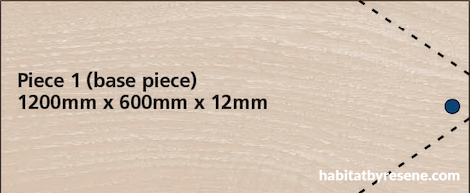

Prepare piece 1 (base piece):
Pieces 2 and 3 (long side pieces of box):
810mm x 350mm x 12mm
Pieces 4 and 5 (short side pieces of box):
576mm x 350mm x12 mm
Piece 6 (front wheels):
90mm x 600mm x 20mm
Measure the centre of piece 6, length and width ways, and mark. Create a hole at this point using a 10.2mm tap drill.
Piece 7 (back wheels):
90mm x 600mm x 20mm
Piece 8 (swivel piece):
215mm x 90mm x 20mm
At the bottom of the piece, sketch a semicircle by tracing around the M12 bolt and cut out with a jig saw.
Piece 9 & 10 (handle sides):
140mm x 90mm x 20mm
To prepare piece 9 & 10 (handle sides):
Piece 11 (handle):
935mm x 45mm x 45mm
To prepare piece 11:
Dowel 25mm, cut to 200mm
Sand all pieces with a power sander, and wipe with a cloth. Paint all pieces in Resene Lumbersider tinted to Resene Elephant and set aside to dry.
To build the beach cart

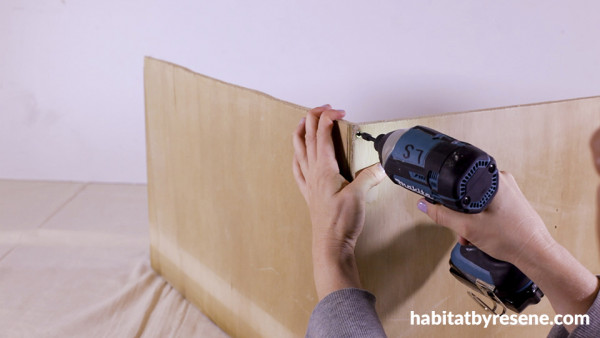

Step 1: Cut your wooden pieces using the cutting guide, then create a box with pieces 2-5 using a power drill and timber screws.
Step 2: Attach box to piece 1.

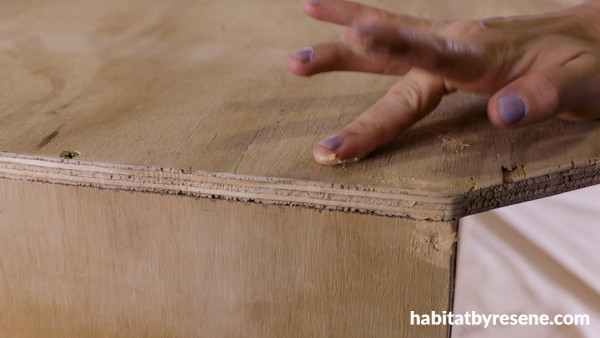

Step 3: Fill in any holes with wood filler, leave to dry then sand. Wipe away any dust with a cloth.
Step 4: Paint the box and cut pieces of wood using a roller. Leigh used two coats of Resene Elephant.
Step 5: Once dry flip the box over. Place the M12 bolt through the hole at the top of the base and thread piece 6 onto it, using M12 washers between each piece. Secure the bolt with a small bit of give for swivelling.

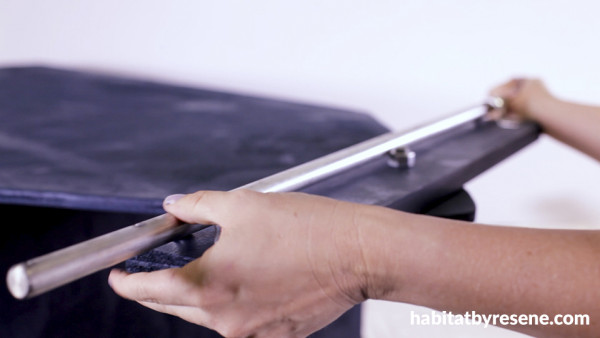

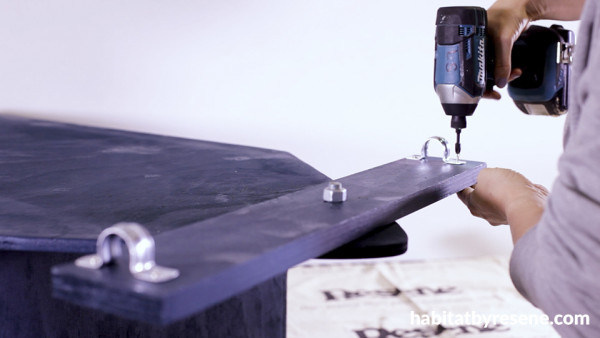

Step 6: Attach saddle clamps on either side of the length of piece 6 about 20mm in from either side to form the axle.

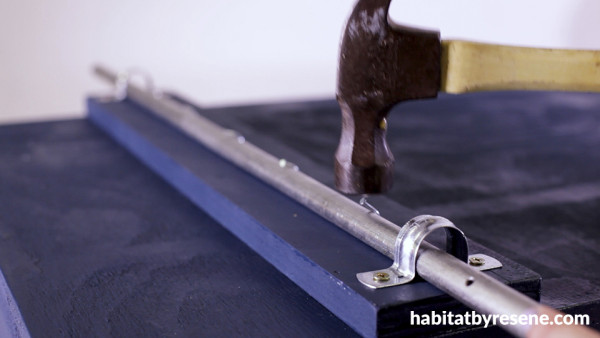

Step 7: Secure the axle with box nails placed tightly against and along the axle piece, with the axle piece sitting tightly against one side of the saddle clamps. Hammer the top of the nails so that they sit flush over the axle.

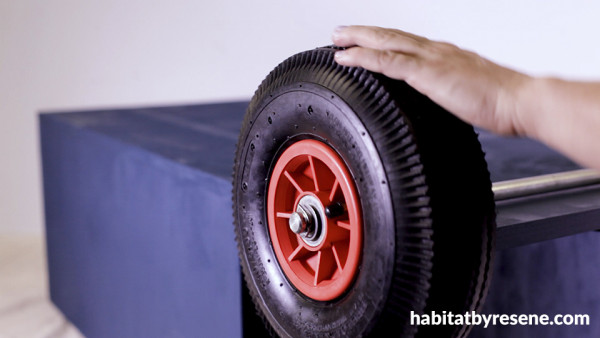

Step 8: Attach the wheels to each side in this order: butterfly pin, then washer, top tip You can adapt this to be smaller or bigger, depending on your needs. Visit second-hand stores for old wheelbarrows, hand trollies or prams with working wheels. You can also use timber offcuts, instead of new wood. then wheel, then washer, then butterfly pin.

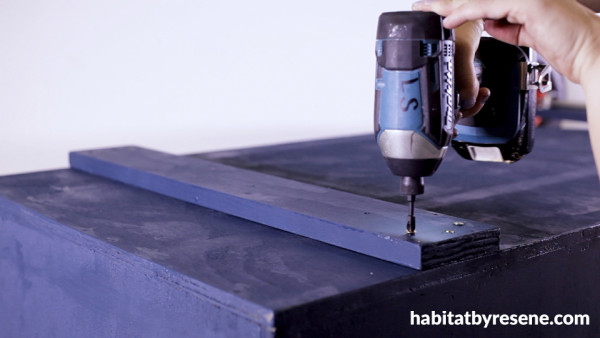

Step 9: From the bottom, measure up 140mm on both sides of the width and draw a line across. Sit the bottom of piece 7 flush against the line and screw the piece onto the base.
Step 10: Screw the axles onto piece 7, repeating steps 6-8.

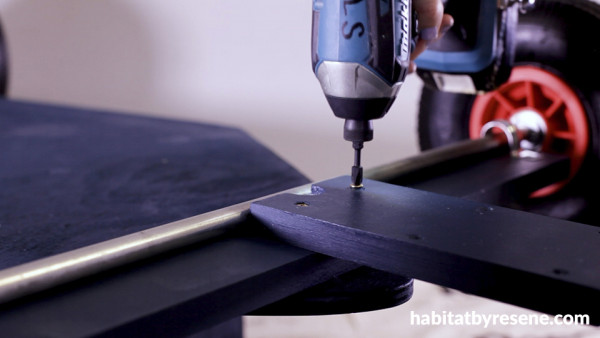

Step 11: Take piece 8 and screw it to the base of piece 6, lining the semi-circle hole with the bolt.

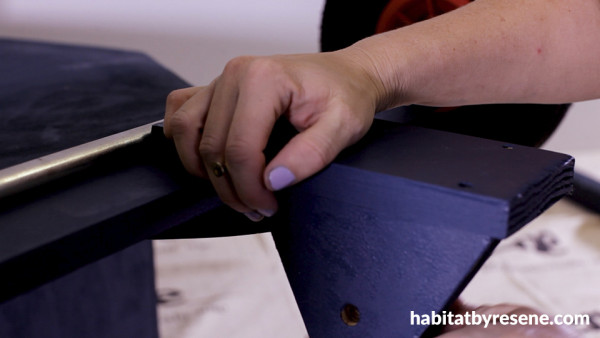

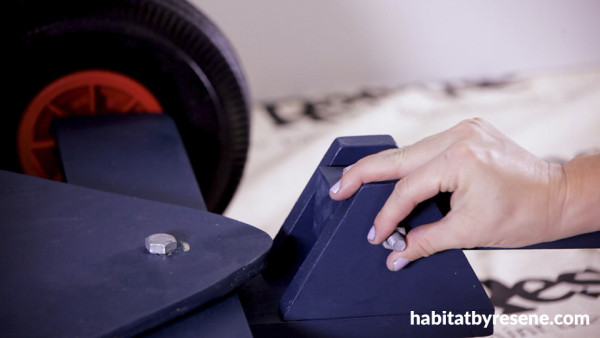

Step 12: Flip the cart over, and screw pieces 9 and 10 on either side of piece 8, at the top.

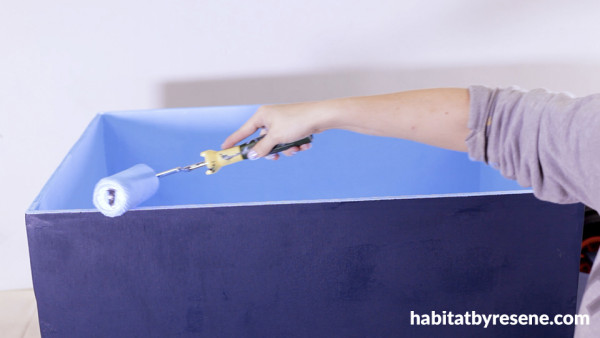

Step 13: Paint the inside of the box. Leigh used two coats of Resene Seagull.

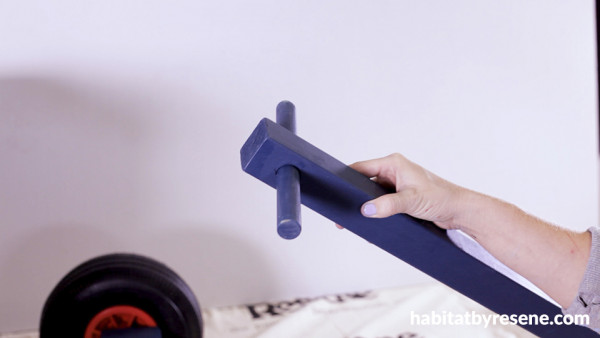

Step 14: Place the dowel inside piece 11 at the top hole to make the handle.
Step 15: Place the other side of the handle between pieces 9 and 10 and use a M10 bolt and washers to secure together.

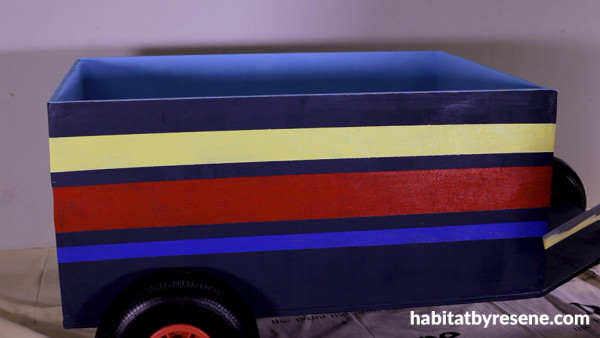

Step 16: Touch up with Resene Elephant. We also painted stripes of varying sizes in Resene Canary, Resene Red Berry and Resene Resolution Blue for a beachy feel. Finish your cart in Resene Concrete Clear for extra outdoor protection.
Have fun at the beach!
